Forma 303

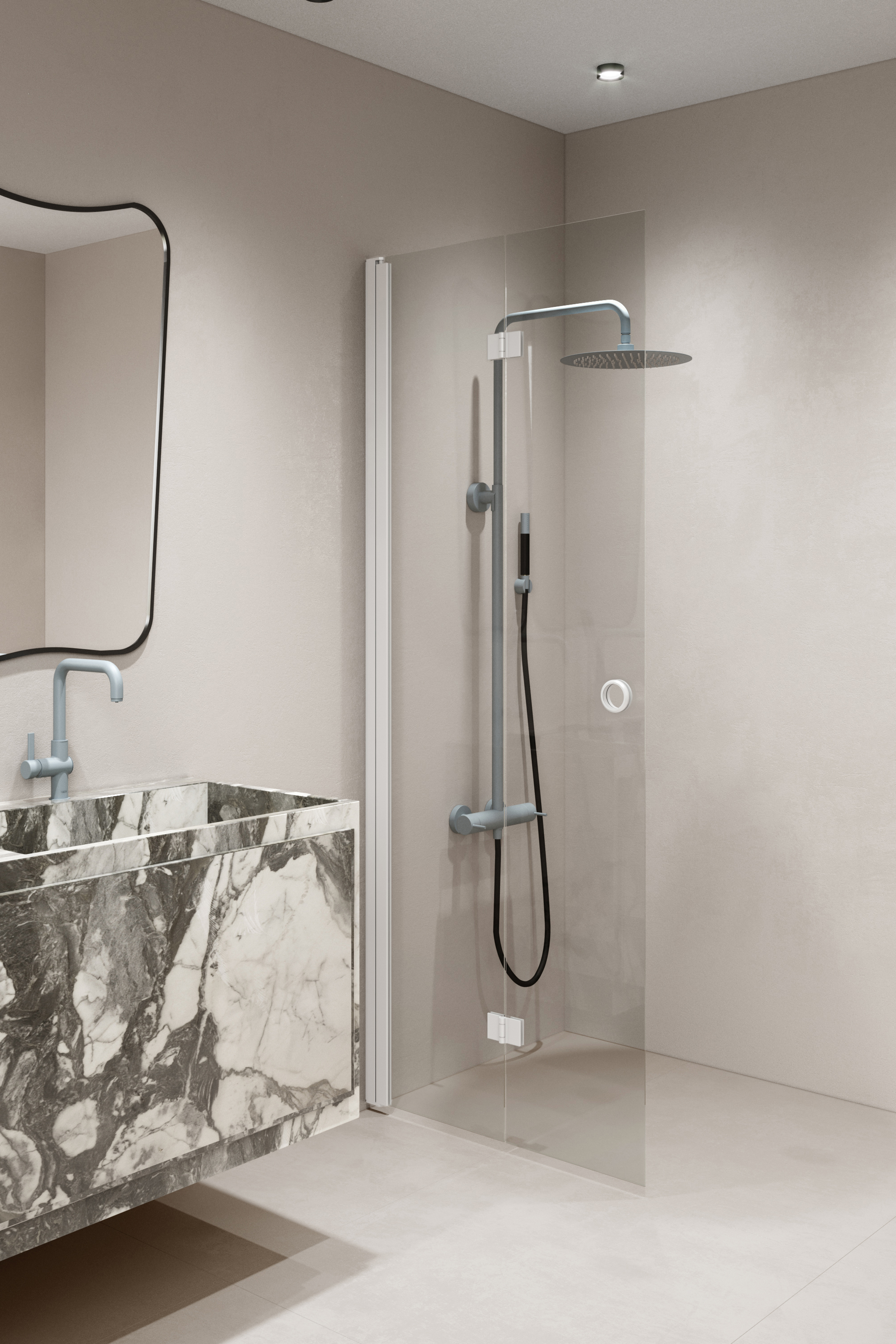

Folding shower screen
Folding shower screen protects the space and the furniture next to the shower from splashing water. When the shower is not in use, the shower screen can be folded into a small space against the wall of the building, inside the shower area. The shower screen turns in both directions and is equipped with adjustable centring. The centring attempts to return the shower screen back to the open and closed positions. In addition, the outermost panel rotates 180 degrees in terms of the inner panel, so that the panels fold against each other into the shower area.
The shower screen is attached to the building wall with a wall mountedprofile. The installation height is freely selectable. By installing the product close to the floor and by mounting a floor seal to the bottom edge of the panel the flow of water can be restricted. Installation guide
10 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016), black (RAL 9005), Sand (RAL 1019) and Mocha (RAL 8025) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White,black, Sand and Mocha profiles have painted fittings, bright profiles have chrome plated fittings and grey profiles have fittings with a brushed nickel finish.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear, grey and bronze are smooth surfaced and transparent glasses. Chinchilla, satin and reeded glasses are not fully transparent, details cannot be made out through the panel. Chinchilla and reeded are textured on one side and smooth on the other side. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mountedprofiles have 15mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.
Product size
The total width of the selected product is:
- At its narrowest: 585mm
- At its widest: 600mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Please select handle model:
Product
Product code
Price
1
Forma 303
Product code
303-61-1
Price
0.00 €
2
Forma 303 Folding shower screen
White painted/Transparent/A=585 x 2025
Product code
303 61 0058
Price
461.00 €
3
Hexagonal handle chrome
Product code
F01 RL MMMM
Price
63.00 €
4
TOTAL
Product code
Price
524.00 €
The total width of the selected product is:
- At its narrowest: 585mm
- At its widest: 600mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
