Casa H01
Cabinet with ceramic basin
Casa series is a combination of simplified design and premium materials. Humidity resistant structures are plated with solid oak veneer.
Unit is provided with two spacious drawers with anti-slip mats and integrated massive oak handles. Simplified ceramic basin has a very low profile and stands out only 18mm from above the cabinet. A siphon set is included in the product with a chrome plated plastic bottom plug.
Basin unit is delivered as assembled and it is mounted on the building wall using screws. Unit is not attached on the floor using e.g. supporting legs. Installation height can be freely chosen. The structurer of the basin unit is humidity resistant but should be protected from water splashes e.g. using a shower screen. Ceramic basin has an overflow channel. Prevex -siphon is provided with the product.
12 Working days
5 year warranty
Cabinet color options are light oak, brown oak and dark brown oak.
Ceramic basin color options are white and black.

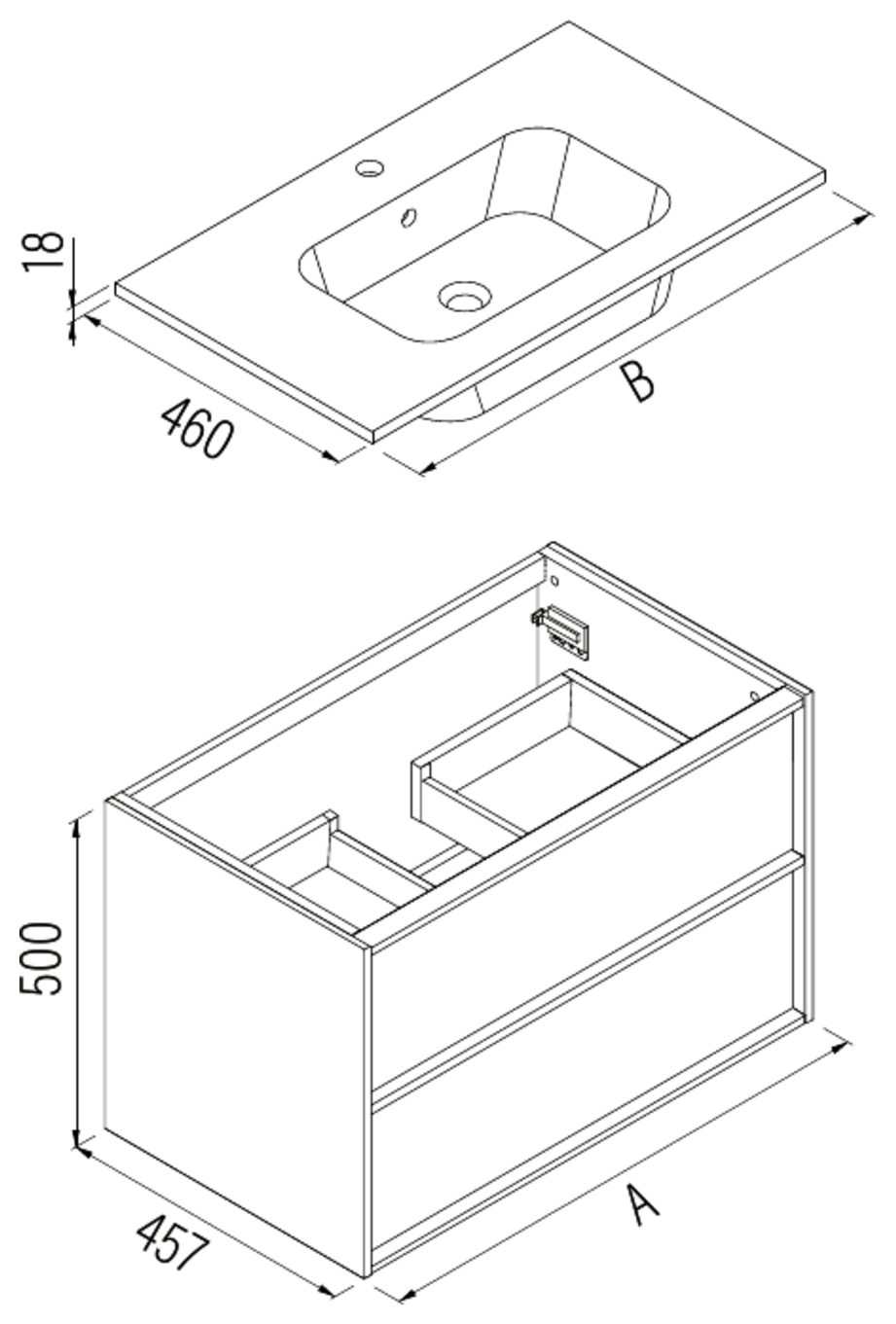

Choose the width of the cabinet and basin (choose so that they correspond to each other). Cabinet height is 500mm and depth 457mm. Basin edge thickness is 18mm. Basin edge surpasses the cabinet edge by 3mm in the front, and 10mm in the sides. The tolerance of ceramic basin outer measures is +-8mm.
Product size
:
Lighting under the basin/worktop is provided with a motion detector switch. Drawer lighting switches on and off when opening/closing the drawer. Please note that electrical supplementaries require power supply to the cabinet. Electrical supplementaries are IP44 protected. Color temperate of lighting elements is 4000 Kelvins. Standard cabinet is supplied with a siphon which has a plastic, chrome plated bottom plug. Plastic plug can be replaced with a ceramic alternative. Instead of standard siphon an EasyClean™ siphon can be provided. This siphon can be easily cleaned from above through the plug of the basin. Please note that EasyClean™ siphon has a chrome plated plastic bottom plug which can't be replaced with a ceramic one.
Product
Product code
Price
1
Casa H01
Product code
H01-A6-66
Price
0.00 €
2
Cabinet
Light oak/A=590 x 457
Product code
R12 AL 0060
Price
1015.00 €
3
Basin
White/B=610 x 460
Product code
R40 R6 0060
Price
186.00 €
4
Standard siphon
Product code
R58 RL MMMM
Price
0.00 €
5
TOTAL
Product code
Price
1201.00 €
:
