Forma 325

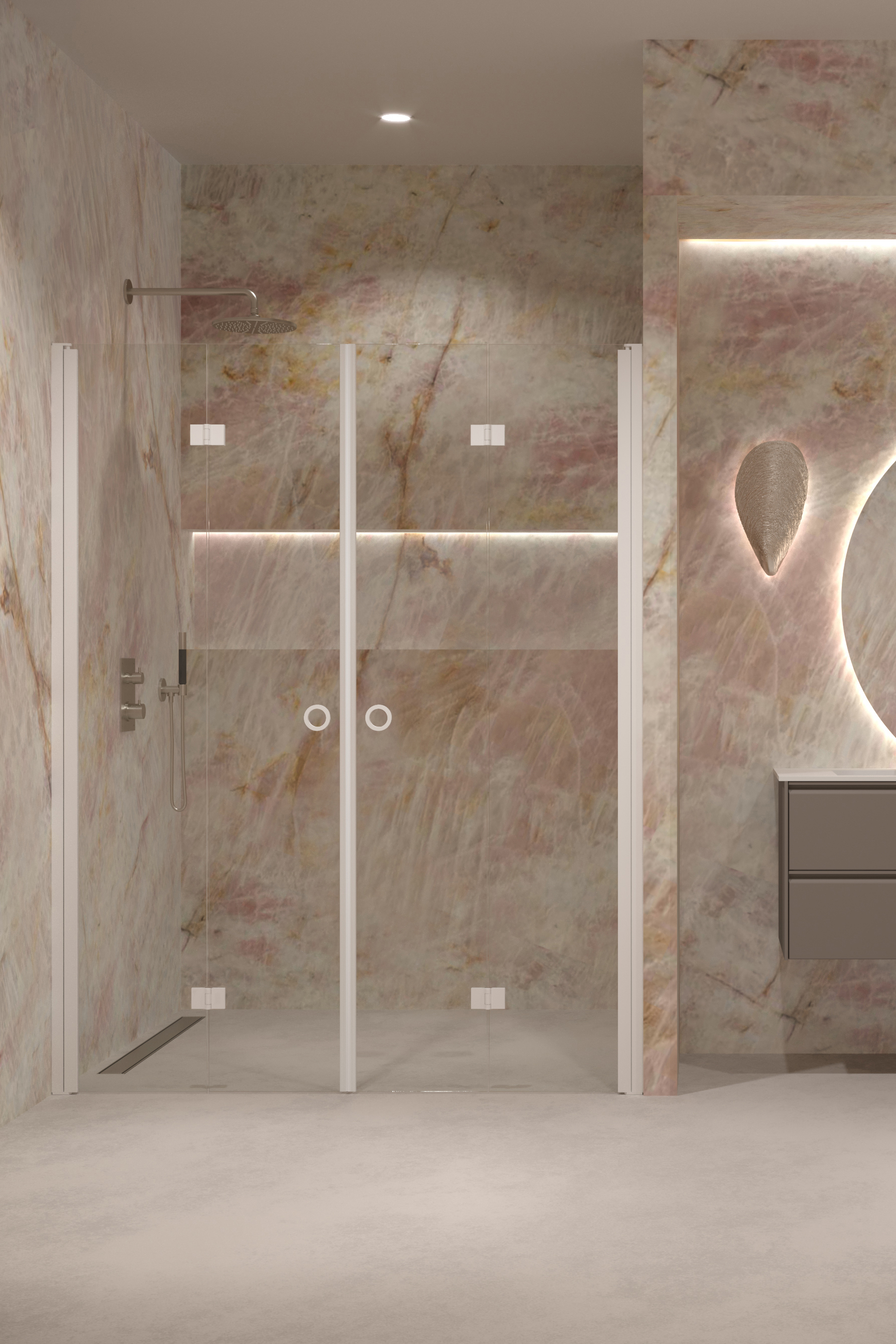

Alcove fitting with folding double doors
Alcove fitting configuration consists of two hinged doors. The product is well-suited for a shower enclosure where doors may not have the space to properly open outwards. Folding door does not require space for opening from outside the shower area but the door folds inside the shower area so that the door panels fold into a small space against the wall of the building. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use the doors can be turned in against the building walls. Doors rotate 90 degrees in both directions and are equipped with adjustable centrings. The function of the centring is to return the door to the open and closed positions. positions. In addition, the outermost panels turn in relation to the innermost panels so that the panels of the doors fold against each other to the internal side of the shower area. A pair of magnet seals keeps the doors tightly closed during showering.
Doors are attached to the building walls by means of wall mountedprofiles. A floor seal , which limits the flow of water can be installed along the bottom edge of the door panel. Installation guide
21 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White and black profiles have white or black painted fittings, bright profiles have chrome plated fittings and grey profiles have fittings with a brushed nickel finish.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear, grey and bronze are smooth surfaced and transparent glasses. Chinchilla, satin and reeded glasses are not fully transparent, details cannot be made out through the panel. Chinchilla and reeded are textured on one side and smooth on the other side. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions. The wall mounted profiles have the total of 30mm adjustment tolerance The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm and it can be grooved for example for the inlet of the surface water pipes.
Product size
The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1194mm
- At its widest: 1224mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Please select handle model:
Product
Product code
Price
1
Forma 325
Product code
325-61-11
Price
0.00 €
2
Forma 303 Alcove folding door
White painted/Transparent/A=597 x 2025
Product code
303 61 0058
Price
461.00 €
3
Forma 303 Alcove folding door
White painted/Transparent/B=597 x 2025
Product code
303 61 0058
Price
461.00 €
4
Hexagonal handle chrome
Product code
F01 RL MMMM
Price
63.00 €
5
Magnet seal pair
Product code
F06 6L 0001
Price
21.00 €
6
Hexagonal handle chrome
Product code
F01 RL MMMM
Price
63.00 €
7
TOTAL
Product code
Price
1069.00 €
The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1194mm
- At its widest: 1224mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:
